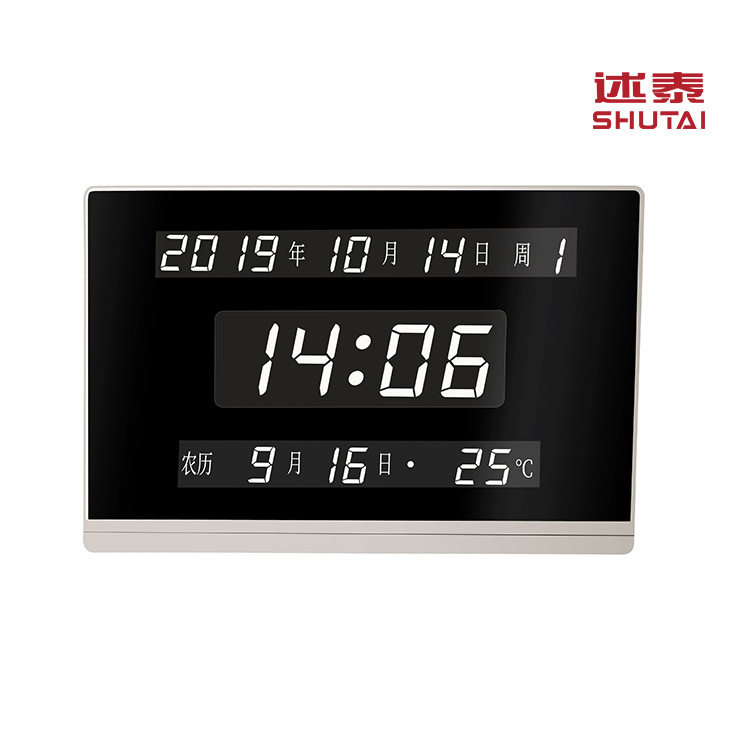

BeiDou GPS satellite
Receives BeiDou and GPS satellite signals to obtain standard time currently, there are over 50 BeiDou and GPS satellites in total, providing wide coverage it only needs to receive signals for a few minutes each day for time synchronization suitable for outdoor environments, mountainous areas, remote regions, at sea, and on islands.
CDMA network time synchronization
Receives standard time from China Telecoms CDMA base stations time synchronization is possible wherever China Telecoms Tianyi mobile phones can receive a signal China Telecom currently has hundreds of thousands of base stations, providing excellent signal coverage it is suitable for densely populated urban and town areas, as well as indoor and basement locations.
NTP time synchronization
It obtains standard time from an internet or local area network time server it automatically sends a request to the server every time it powers on it connects directly via the network port to a router on the local area network.
1. Time Synchronization Methods
(1) BeiDou/GPS Satellite
Receives BeiDou/GPS satellite signals to obtain standard time;
Currently, there are over 50 BeiDou/GPS satellites, providing wide coverage;
Only a few minutes of signal reception per day is needed for time synchronization;
Suitable for outdoor, mountainous, remote areas, sea, islands, etc.;
(2) CDMA Network Time Synchronization
Receives signals from China Telecom CDMA base stations to obtain standard time;
Time synchronization is possible wherever China Telecom's Tianyi mobile phones can receive signals;
China Telecom currently has hundreds of thousands of base stations, providing good signal coverage;
Suitable for cities, towns, densely populated areas, indoor and basement locations.
(3) Network Time Synchronization
Accesses time servers on the internet or local area network to obtain standard time;
Automatically sends requests to the server after each power-on;
Direct network connection, connected to a router on the local area network.
2. Automatic Time Synchronization
Automatically eliminates accumulated time drift errors by receiving satellite signals, requiring no manual adjustment;
3. Other Features
(1) Automatic correspondence between Gregorian and Lunar calendars, automatic adjustment for leap years and months with different numbers of days, and display of hours, minutes, and seconds;
(2) Built-in Lithium Battery
Can maintain internal clock operation for 5 years in case of power outage;
(3) Accurate Timekeeping
Even without receiving satellite signals, the cumulative error is < 3 seconds/month (0℃~25℃);
(4) Temperature Measurement and Display
Temperature display range (-9~50℃).
(5) Reliable and Stable
Uses an EMI power filter, unaffected by power fluctuations.
Specifications
| Category | Subcategory | Description |
|---|---|---|
| Performance Features | Beidou-2 Signal Reception | B1: BD2 B1 (1561.098MHz) |
| GPS Signal Reception | GPS L1 (1575.061MHz) | |
| Telecom CDMA Base Station Signal | 800MHz CDMA | |
| Ethernet | 10M/100M/10G Ethernet, IEEE 802.3 | |
| Electrical Characteristics | Power Supply | 110~220V, 50Hz (suitable for regions using 110V AC, e.g., South Korea, Taiwan) |
| Power Consumption | 1.5W~5W (varies by model) | |
| Reliability | MTBF > 100000h | |
| Electromagnetic Compatibility | Complies with GB-9254–1998 Class A (radio interference limit) | |
| Mechanical Characteristics | Appearance | DH Series (DP6812, DP6822): Electrophoretic aluminum frame / high-strength crystal glass panelDP1625, DP2245, DP3860: Integrally molded shell / organic glass panel |
| Installation Method | Wall-mounted / Suspended / Rack-mounted | |
| Dimensions & Weight | 390*1130*44mm | |
| Environmental Characteristics | Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C | |
| Humidity | 5%~95% RH |
