BeiDou GPS satellite
It receives BeiDou and GPS satellite signals to obtain standard time currently, there are over 50 BeiDou and GPS satellites in total, providing wide coverage it only needs to receive signals for a few minutes each day for time synchronization suitable for outdoor environments, mountainous areas, remote regions, at sea, and on islands.
CDMA network time synchronization
It receives standard time from China Telecoms CDMA base stations time synchronization is possible wherever China Telecoms Tianyi mobile phones can receive a signal China Telecom currently has hundreds of thousands of base stations, providing excellent signal coverage it is suitable for densely populated urban and town areas, as well as indoor and basement locations.
Network time synchronization
It obtains standard time from an internet or local area network time server it automatically sends a request to the server every time it powers on it connects directly via the network port to a router on the local area network.
Overview:

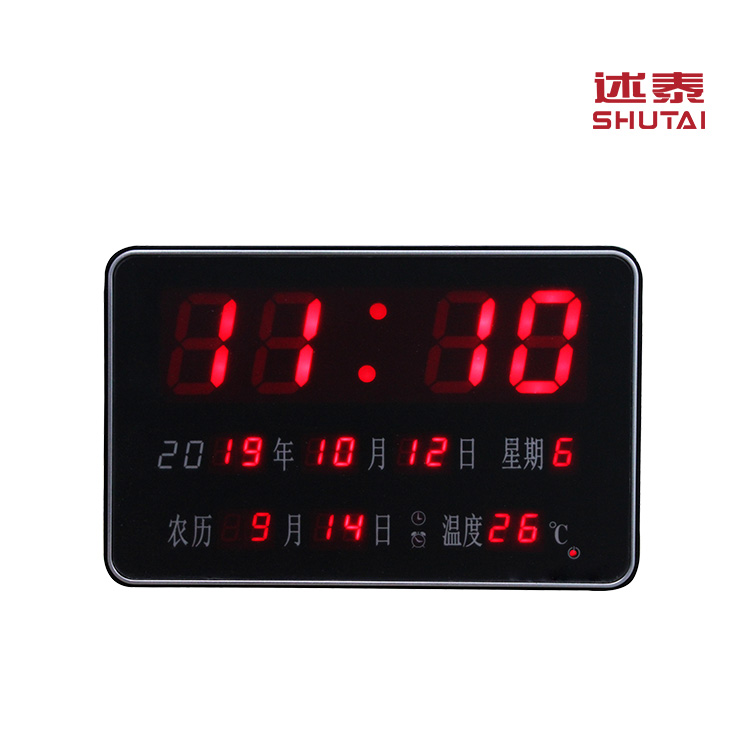

DP1625 is a time terminal that displays information using LED digital tubes. It can automatically correct the time by receiving external signals. With its exquisite craftsmanship and elegant design, it is suitable for various applications such as offices and control rooms.
Features:
(1) Automatic time synchronization to eliminate timing errors;
(2) Displays year, month, day, hour, minute, and week; displays both Gregorian and lunar calendars; displays temperature;
(3) Alarm clock function;
(4) Power-off memory function;
(5) Can be placed on a desktop or mounted on a wall;
(6) Optional: Supports PoE power supply;
(7) Optional: Supports network management monitoring (NTP time synchronization model only).
Features
| Category | Subcategory | Description |
|---|---|---|
| Performance Features | Beidou-2 Signal Reception | B1: BD2 B1 (1561.098MHz) |
| GPS Signal Reception | GPS L1 (1575.061MHz) | |
| Telecom CDMA Base Station Signal | 800MHz CDMA | |
| Ethernet | 10M/100M/10G Ethernet, IEEE 802.3 | |
| Electrical Characteristics | Power Supply | 110~220V, 50Hz (suitable for regions using 110V AC, e.g., South Korea, Taiwan) |
| Power Consumption | 1.5W~5W (varies by model) | |
| Reliability | MTBF > 100000h | |
| Electromagnetic Compatibility | Complies with GB-9254–1998 Class A (radio interference limit) | |
| Mechanical Characteristics | Appearance | DH Series (DP6812, DP6822): Electrophoretic aluminum frame / high-strength crystal glass panelDP1625, DP2245, DP3860: Integrally molded shell / organic glass panel |
| Installation Method | Wall-mounted / Suspended / Rack-mounted | |
| Dimensions & Weight | Varies by model | |
| Environmental Characteristics | Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C | |
| Humidity | 5%~95% RH |
