BeiDou GPS satellite
It receives BeiDou and GPS satellite signals to obtain standard time currently, there are over 50 BeiDou and GPS satellites in total, providing wide coverage it only needs to receive signals for a few minutes each day for time synchronization suitable for outdoor environments, mountainous areas, remote regions, at sea, and on islands.
CDMA network time synchronization
It receives standard time from China Telecoms CDMA base stations time synchronization is possible wherever China Telecoms Tianyi mobile phones can receive a signal China Telecom currently has hundreds of thousands of base stations, providing excellent signal coverage it is suitable for densely populated urban and town areas, as well as indoor and basement locations.
Network time synchronization
It obtains standard time from an internet or local area network time server it automatically sends a request to the server every time it powers on it connects directly via the network port to a router on the local area network.
Product Overview:

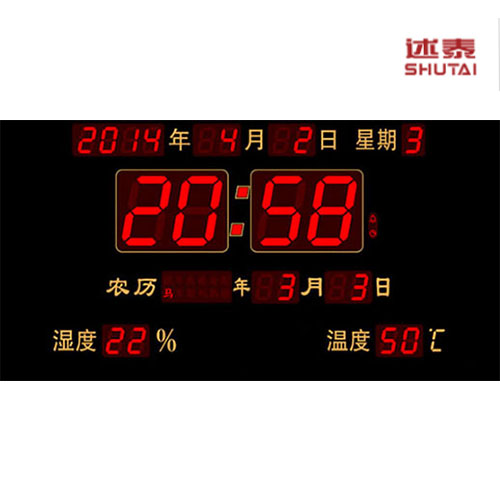

The GA6829-E is a time terminal that displays information using LED digital tubes. It can receive external signals for automatic time correction, features exquisite craftsmanship, and has an elegant and stylish appearance, making it suitable for various applications such as offices and control rooms.
Product Features:
(1) Supports NTP network time synchronization;
(2) Automatic time correction to eliminate timing errors;
(3) Displays year, month, day, hour, minute, and second;
(4) Power-off memory function;
(5) Temperature measurement and display, range (-9~50℃);
(6) Humidity measurement and display, range (5~95 %RH);
Category | Subcategory | Description |
Interface | E: Ethernet Data | 10M/100M/10G Ethernet, IEEE 802.3, NTP protocol, RJ45 port |
Electrical Characteristics | Power Supply | 110~220V, 50Hz (suitable for 110V AC regions like South Korea, Taiwan) |
Power Consumption | 1.5W~5W, determined by model | |
Reliability | MTBF≥10000h | |
Electromagnetic Compatibility | Complies with Radio Interference Limit GB-9254-1998 Standard Class A | |
Mechanical Characteristics | Appearance | Aluminum alloy frame / Acrylic panel |
Installation Method | Wall-mounted | |
Dimensions | 350×550×56mm | |
Environmental Characteristics | Operating Temperature | -20°C ~ +70°C |
Storage Temperature | -40°C ~ +70°C | |
Humidity | 5%~95% RH |

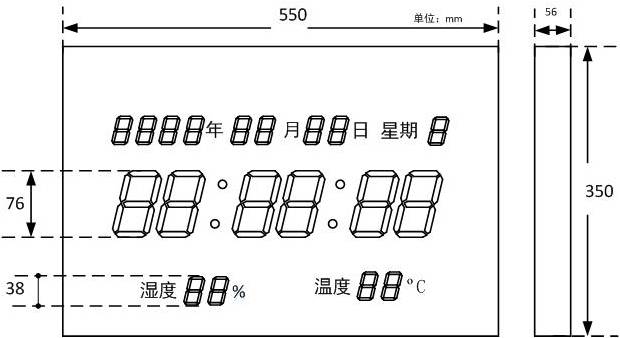

Dimensions
