R16W-E

Product Model:R16W-E
Time Display:Pointer clock
Time Selection:GPS/NTP Ethernet/Wi-Fi/4G
Power Supply:220V 50Hz/5VDC

Contact Info: +86- (0)731 88761671

Free Consultation & Customization

Shutai Product Center

Contact Customer Service

+86- (0)731 88761671

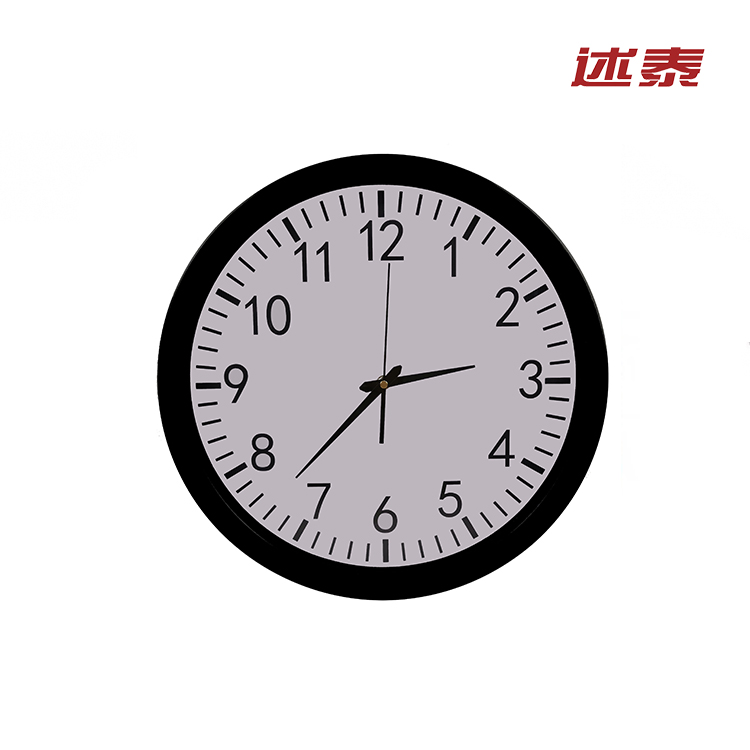

R16W-E Pointer Clock

Product Overview:

R16W-E is a time display terminal that automatically corrects the time by receiving external signals. It features exquisite craftsmanship and an elegant design, making it suitable for various applications such as offices and control rooms.

Product Features:

(1) Automatic time synchronization to eliminate timing errors;

(2) Supports multiple time synchronization methods, including Beidou/GPS satellite, telecommunication base stations, and NTP Ethernet;

(3) Power-off memory function;

(4) Silent operation;

(5) Optional: Supports PoE power supply;

Connectivity (Versatile & Reliable)

Satellite Sync: Beidou/GPS (1555–1580MHz) for sub-second time accuracy.
Wireless Options: China Telecom (800M–1800M), WiFi (2.4GHz), proprietary LoRa (398M–525MHz).
Wired & Bus: 10M/100M/10G Ethernet (NTP/SNTP), RS485 industrial bus.

Performance & Durability

Power: 110–220V (works with 110V regions like Taiwan); 1.5W–5W low power draw.
Reliability: MTBF > 100,000 hours; EMC-compliant (GB-9254-1998 Class A).

Build & Environment

Design: Integrated molded shell + high-strength glass panel; wall-mounted (40CM outer diameter).
Weatherproof: Operates -20℃ to +70℃; storage -40℃ to +70℃; 5%–95% RH tolerance.
