How to Address GNSS Timing Anomalies? A Five-Layer Protection System Establishes a Precise Spatiotemporal Foundation

When a stock exchange timestamp deviates by 0.1 seconds, it may trigger billions in capital fluctuations; a synchronisation error of 1 microsecond in a 5G base station could cause communication blackouts across entire regions. As the ‘spatial-temporal pulse’ of modern society, the reliability of GNSS (Global Navigation Satellite System) timing systems directly impacts the operation of critical infrastructure. Shutei Synchronisation Clocks delves into the technical causes of GNSS time deviations and provides multi-dimensional solutions.

I. Causes of GNSS Time Deviations

Space Segment Anomalies

Satellite atomic clock failures (e.g., the 2016 large-scale outage of Galileo satellites' rubidium clocks)

Epoch data errors (2020 GPS III satellite epoch anomaly incident)

Satellite signal power attenuation (solar storms causing 60% signal strength reduction)

Propagation Segment Interference

Ionospheric scintillation (maximum delay of 100ns in equatorial regions)

Multipath effects (errors up to 15 metres/50ns in urban canyon environments)

Malicious interference (2022 GPS spoofing incident in the Black Sea region)

Receiver Defects

Crystal Oscillator Temperature Drift (Standard TCXO daily drift ±1.5ppm, equating to 130ms daily error)

Firmware Algorithm Flaws (Leap Second Processing Vulnerability in Certain Brand Receivers)

Antenna Performance Degradation (VSWR >3 causing 6dB signal loss)

II. Five-Tier Defence Technology Framework

1. Signal Layer Fortification

Multi-mode, multi-frequency reception: Simultaneous reception of GPS L1/L5, BeiDou B1/B2, and Galileo E1/E5a signals

Anti-interference Antenna: Utilises adaptive zero-tuning antenna array to suppress interference exceeding 30dB

Signal Quality Monitoring: Real-time calculation of C/N0, pseudorange residual, and multipath metrics

2. Hardware Layer Redundancy

3. Algorithm Layer Optimisation

Multi-source Fusion Positioning: Integrating IMU inertial data to compensate for signal interruptions

Dynamic Kalman Filtering: Establishing a clock error model: dT = a(t-t0) + 0.5b(t-t0)² + ε

Machine Learning Anomaly Detection: Training LSTM networks to identify signal spoofing characteristics

4. System Layer Redundancy

Establishing a ground-space mutual backup system:

System architecture

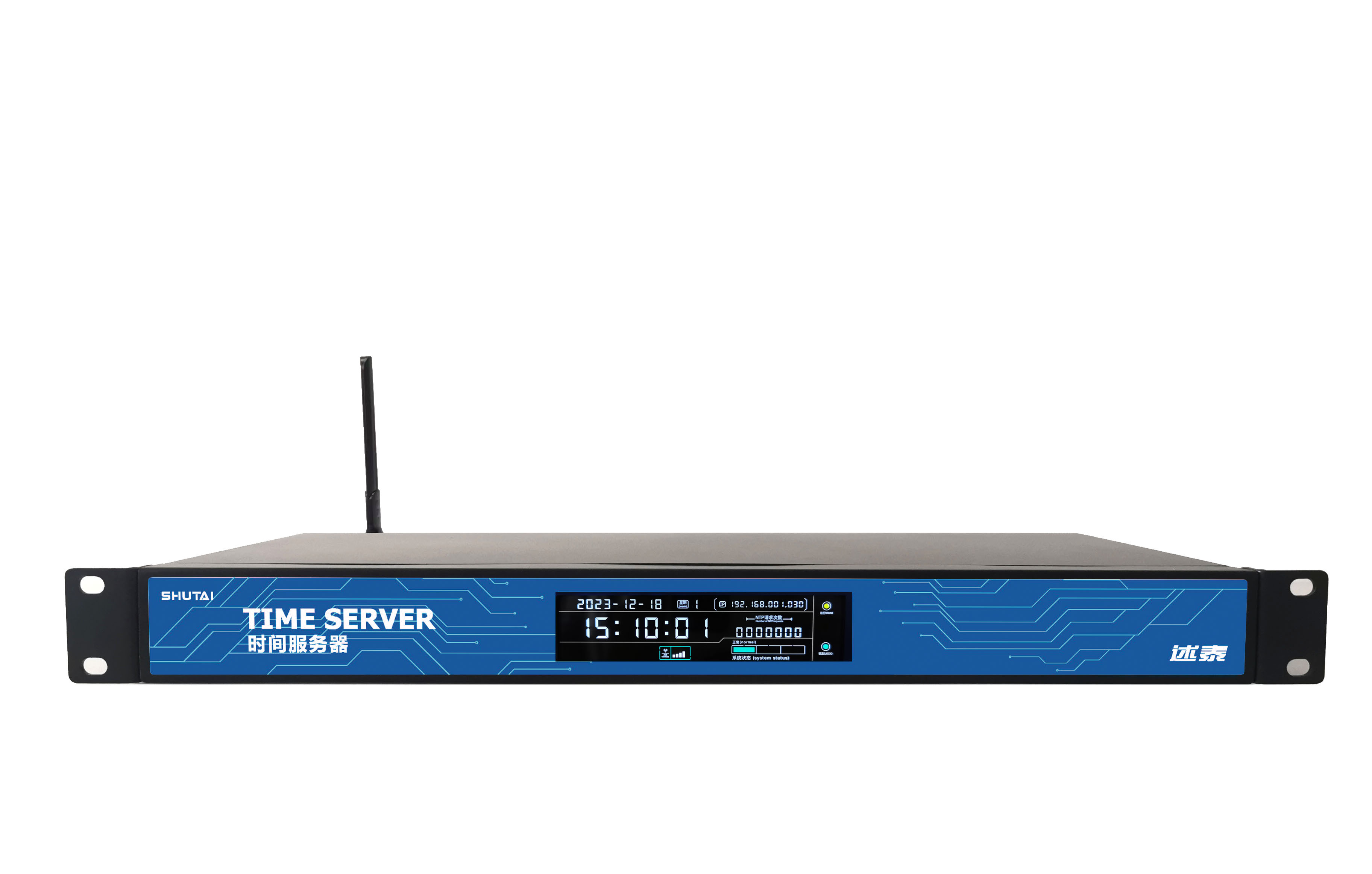

Primary channel: GNSS receiver → PTP time server
|
Backup channel: Ground-based BDS augmentation station → Fibre-optic time transmission
|
Emergency channel: Cesium atomic clock autonomous time-keeping

5. Application Layer Fault Tolerance

Deploy a client-server architecture time difference monitoring platform with three-tier threshold-triggered alerts

Implement IEEE 1588-2019 transparent clock specifications to eliminate asymmetric network delays

Develop a blockchain-based distributed timestamp service

III. Scenario-Based Solution Recommendations

Financial Trading Systems: GNSS + Fibre-Optic PTP + Cesium Clock triple-mode hot standby, MTBF > 100,000 hours

Smart Grids: Regional deployment of BeiDou ground-based augmentation stations, time-keeping accuracy ±0.1μs

Vehicle-Infrastructure Coordination: V2X communication synchronisation + roadside MEMS inertial navigation compensation

General IoT: GNSS/NTPv5 hybrid timing, software dynamic weighting algorithm

With advances in quantum precision measurement, novel CPT coherent population trapping atomic clocks have achieved chip-scale integration, reducing volume to 1cm³ with power consumption <100mW. When satellite-ground collaborative timing networks integrate with quantum time-frequency transfer technology, future time synchronisation will enter a new era of nanosecond precision. It is recommended that critical systems reserve fibre optic timing interfaces to prepare for next-generation timing architecture upgrades.
